Actuator Operate Valves

Delivery 6~8 Weeks after PO


Features

»316 cold-work stainless steel valve body for excellent corrosion resistant and high tensile. Other special materials available.
»316 stainless steel actuator for IFV series valves and Aluminum alloy actuator for NV & NR series valves.
»Panel Mounting for IFV series valves and Bracket installation forNV & NR series valves.
»Integral though-holes for bracket mounting. Panel mounting is also available.
»Normally Open Valves and Normally Closed Valves available.
»The Valve can be quickly removed from the actuator. It is easy to repaired and low maintenance costs.
»6 pressure levels available .6000 psig, 10000 psig,15000 psig, 20000 psig, 30000 psig and 60000 psig.
»Working temperature ranges from -40°F to 250°F(-40℃ to 120℃) for standard valves. And valves for other temperatures are available.
»Pneumatic or hydraulic pilot for IFV series, air pilot for NV & NR series.
https://www.uwatches.co.uk/ulysse-nardin-freak-replica/

Contact

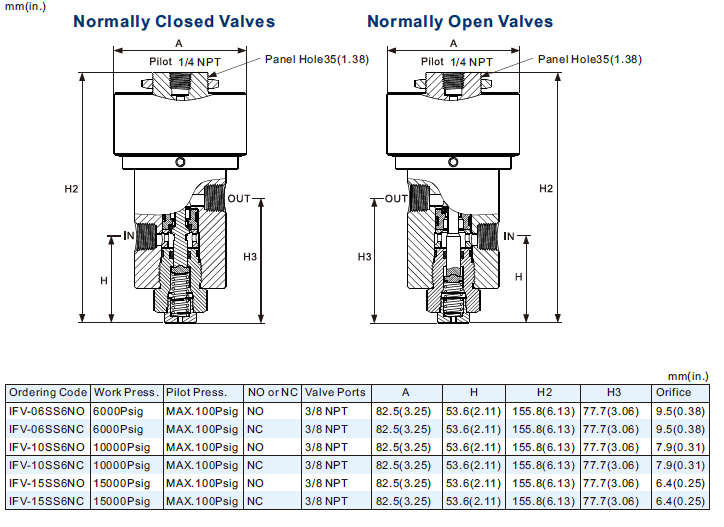

IFV series Valves

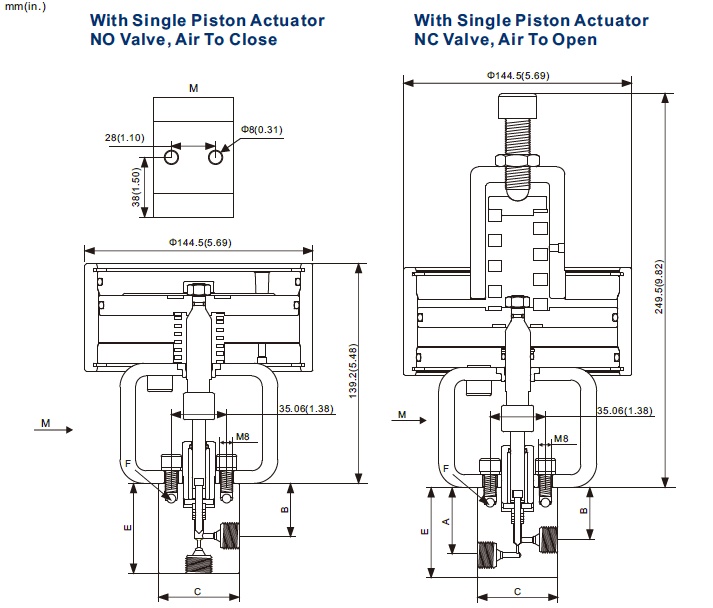

Single Drive Pneumatic Operate Valves

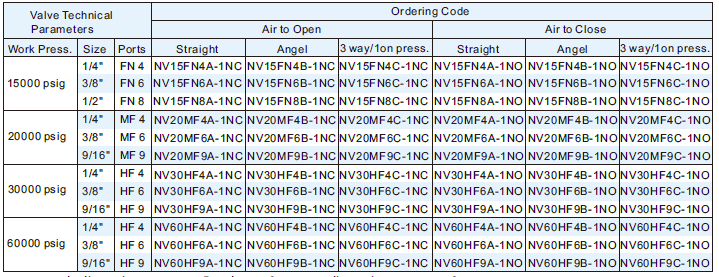

NV Series Valves

1. Valve body dimensions see page 5 and page 6, actuator dimensions see page 8.
2. Ordering codes listed are standard. Other sizes, materials and types are available upon request. For special requirements,please contact us.

NR Series Valves

https://www.watches-direct.co.uk/harry-winston-midnight-replica/

1.Valve body dimensions see page 3 and page 4, actuator dimensions see page 8.
2.Ordering codes listed are standard. Other sizes, materials and types are available upon request. For special requirements,please contact us.

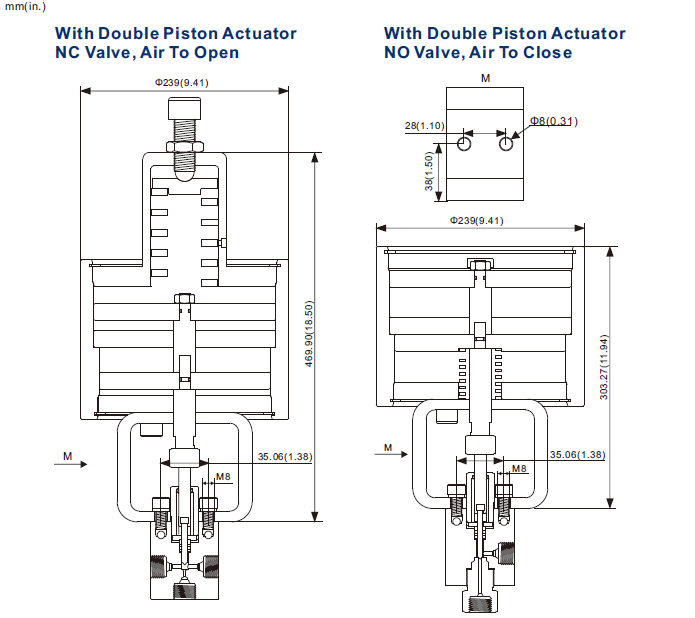

Double Drive Pneumatic Operate Valves

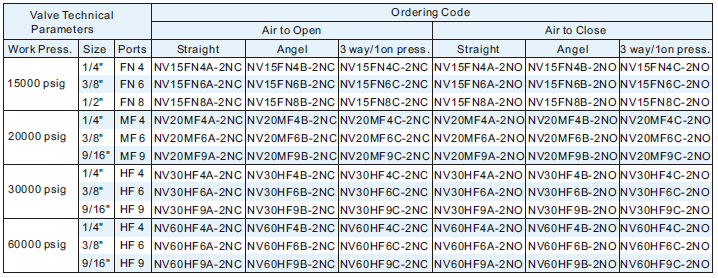

NV Series Valves

NR Series Valves

1.Valve body dimensions see page 3, page 4, page 5 and page 6, actuator dimensions see page 9.
2.Ordering codes listed are standard. Other sizes, materials and types are available upon request. For special requirements,please contact us.

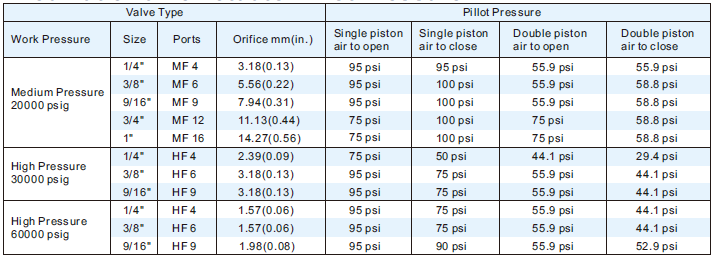

Pneumatic Valve Actuator Pilot Pressure
